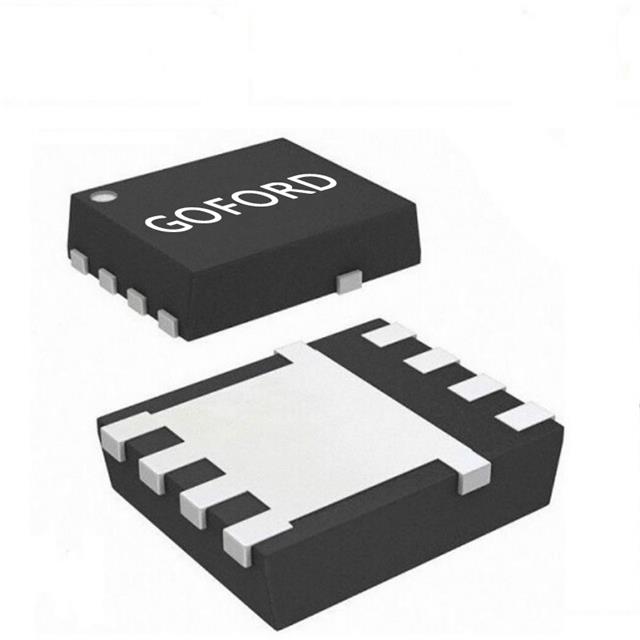

GT065P06D5
MOSFET P-CH 60V 103A DFN5*6-8LManufacturer: Goford Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 103A (Tc) 178W (Tc) Surface Mount 8-DFN (4.9x5.75)
Additional Information
Series: SGTRoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 103A (Tc) |
| Rds On (Max) @ Id, Vgs | 7mOhm @ -20A, -10V |
| FET Feature | - |
| Power Dissipation (Max) | 178W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-DFN (4.9x5.75) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 62 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5730 pF @ 30 V |
Request a Quote
