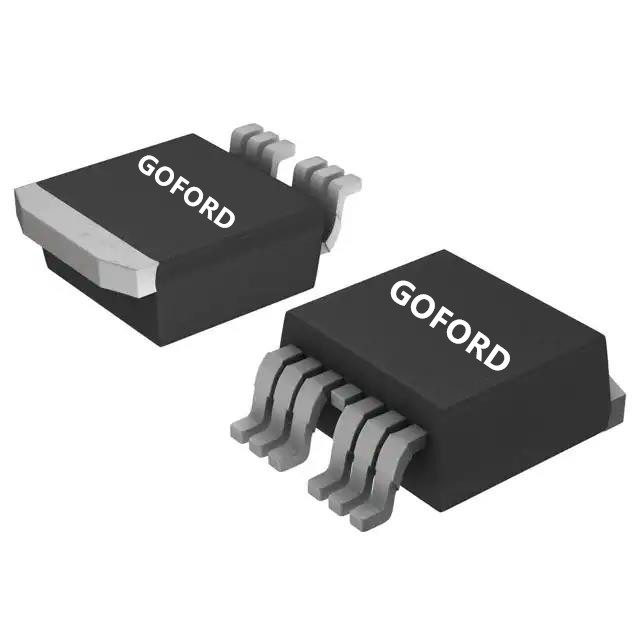

GT025N06AM6
N60V,170A,RD<2.0M@10V,VTH1.2V~2.Manufacturer: Goford Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 170A (Tc) 215W (Tc) Surface Mount TO-263-6
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 170A (Tc) |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 215W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | TO-263-6 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5058 pF @ 30 V |
Request a Quote
