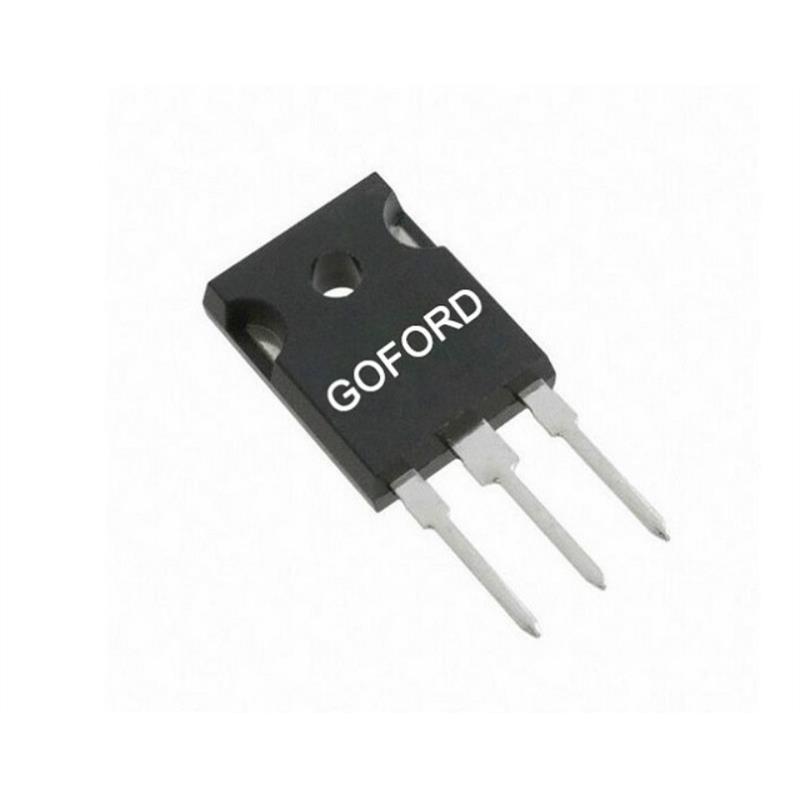

GT016N10Q
MOSFET N-CH 100V 228A TO-247Manufacturer: Goford Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
228A (Tc) Surface Mount TO-247-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25°C | 228A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.2mOhm @ 20A, 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Supplier Device Package | TO-247-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Gate Charge (Qg) (Max) @ Vgs | 165 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 9530 pF @ 50 V |
