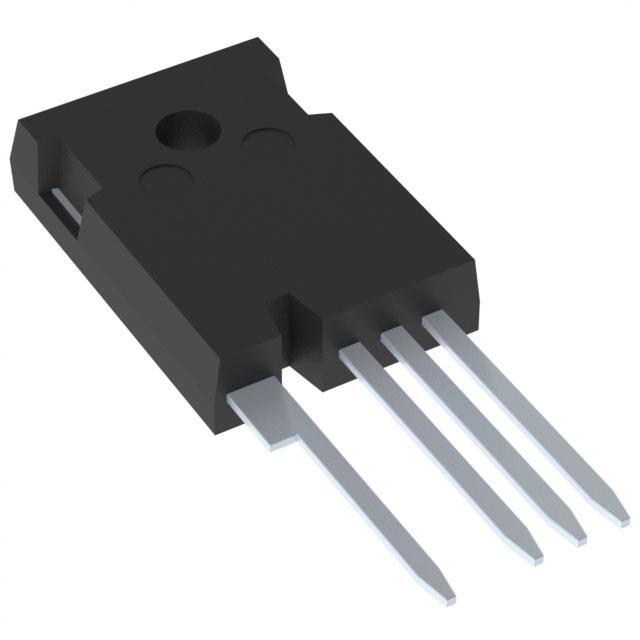

GS120R045Q4
SiC MOSFET N-CH 1200V 60A TO-24Manufacturer: Goford Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1200 V 60A (Tc) 395W (Tc) Through Hole TO-247-4L
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 20A, 18V |
| FET Feature | - |
| Power Dissipation (Max) | 395W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 10mA |
| Supplier Device Package | TO-247-4L |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Vgs (Max) | -10V, +20V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2565 pF @ 1000 V |
