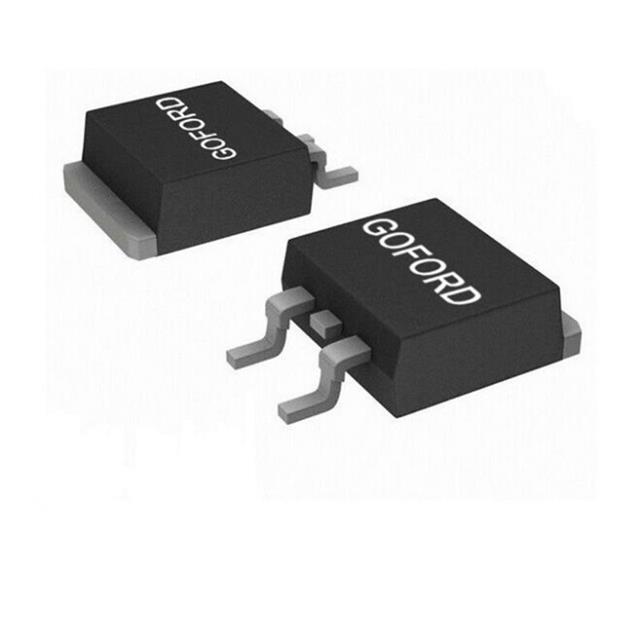

G75P04K
P40V,RD(MAX)<10M@-10V,VTH-1.2V~-Manufacturer: Goford Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 40 V 80A (Tc) 115W (Tc) Surface Mount TO-252
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
| Rds On (Max) @ Id, Vgs | 6.5mOhm @ 10A, 20V |
| FET Feature | - |
| Power Dissipation (Max) | 115W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | TO-252 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 106 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7039 pF @ 20 V |
Request a Quote
