G6N02L
MOSFET N-CH 20V 6A SOT-23-3LManufacturer: Goford Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

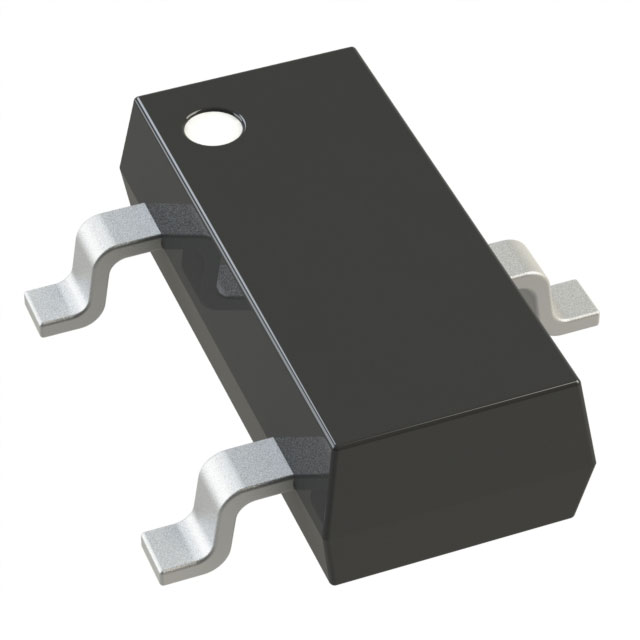

N-Channel 20 V 6A (Tc) 1W (Tc) Surface Mount SOT-23-3
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Rds On (Max) @ Id, Vgs | 11.3mOhm @ 3A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Tc) |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Supplier Device Package | SOT-23-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 12.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1151 pF @ 15 V |
