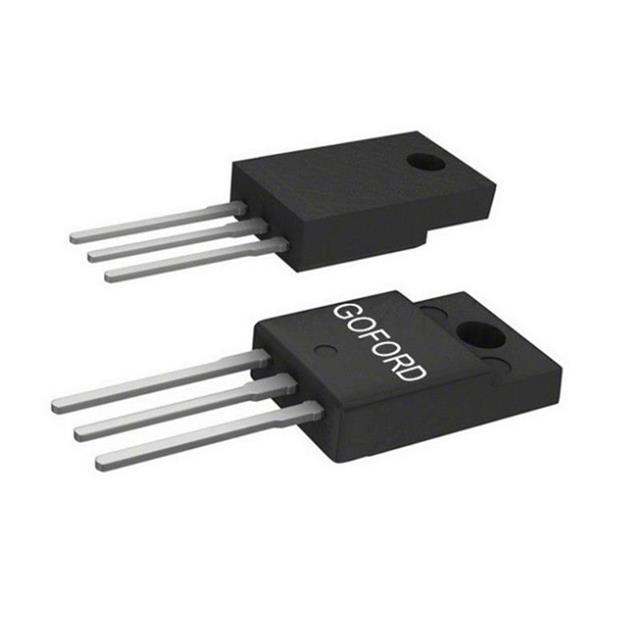

G58N06F
MOSFET N-CH 60V 35A TO-220FManufacturer: Goford Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 35A (Tc) 44W (Tc) Through Hole TO-220F
Additional Information
Series: TrenchFET®RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 30A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 44W (Tc) |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Supplier Device Package | TO-220F |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
