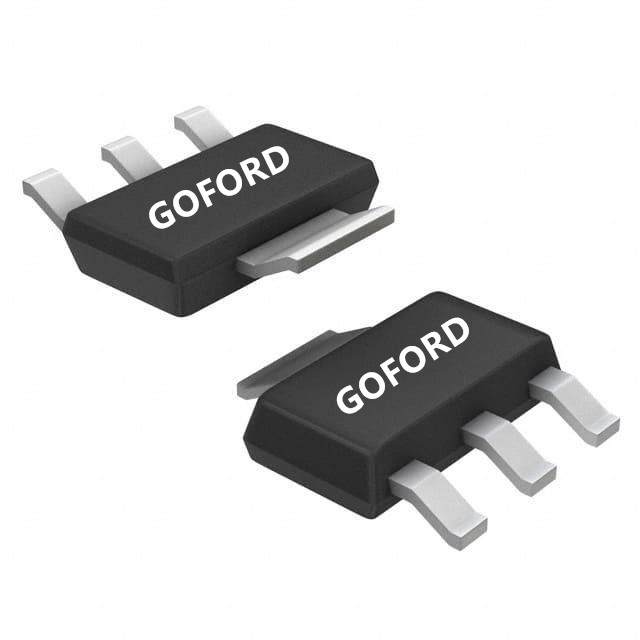

G3K8N15HE
MOSFET N-CH ESD 150V 2A SOT-223Manufacturer: Goford Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 150 V 2A (Tc) 2.16W (Tc) Surface Mount SOT-223
Additional Information
Series: TrenchFET®RoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-261-4, TO-261AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2A (Tc) |
| Rds On (Max) @ Id, Vgs | 370mOhm @ 2A, 10V |
| Power Dissipation (Max) | 2.16W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | SOT-223 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 558 pF @ 75 V |
