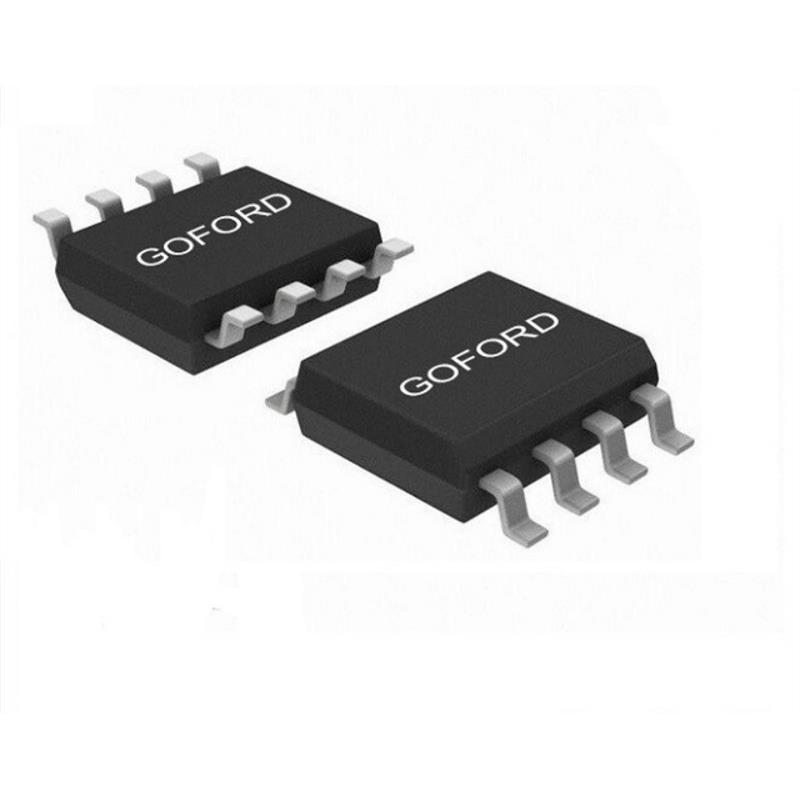

G230P06S
MOSFET P-CH 60V 9A SOP-8LManufacturer: Goford Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 9A (Tc) 3W (Tc) Surface Mount 8-SOP
Additional Information
Series: TrenchFET®RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 8-SOP |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4784 pF @ 30 V |
Request a Quote
