G08N02H
N20V, 12A, RD<11.3M@4.5V,VTH0.5VManufacturer: Goford Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

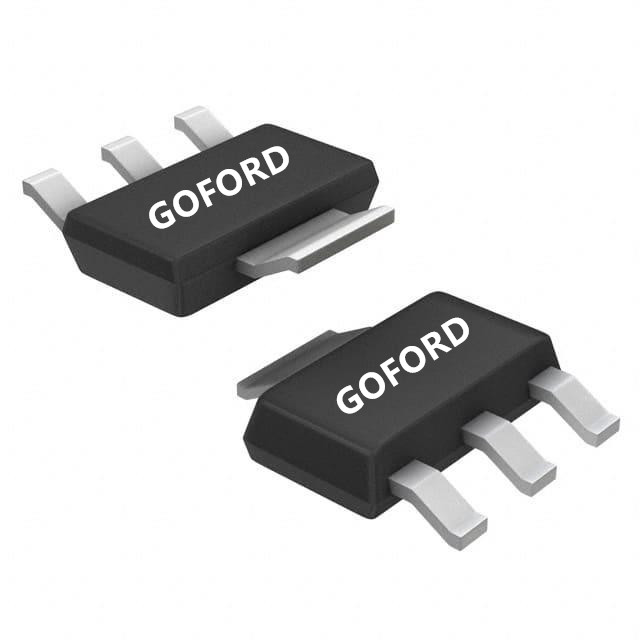

N-Channel 20 V 12A (Tc) 1.7W (Tc) Surface Mount SOT-223
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-4, TO-261AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Rds On (Max) @ Id, Vgs | 11.3mOhm @ 1A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.7W (Tc) |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Supplier Device Package | SOT-223 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 12.5 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1255 pF @ 10 V |
