G350N06D32
MOSFET N+N-CH 60V10A 20W DFN3*3-Manufacturer: Goford Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 60V 10A (Tc) 20W (Tc) Surface Mount 8-DFN (3.15x3.05)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 20W (Tc) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1330pF @ 30V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-DFN (3.15x3.05) |
| Grade | - |
| Qualification | - |
Request a Quote
Clients Also Buy
G1K2C10S2
MOSFET 100V 3A/3.5A 8SOP

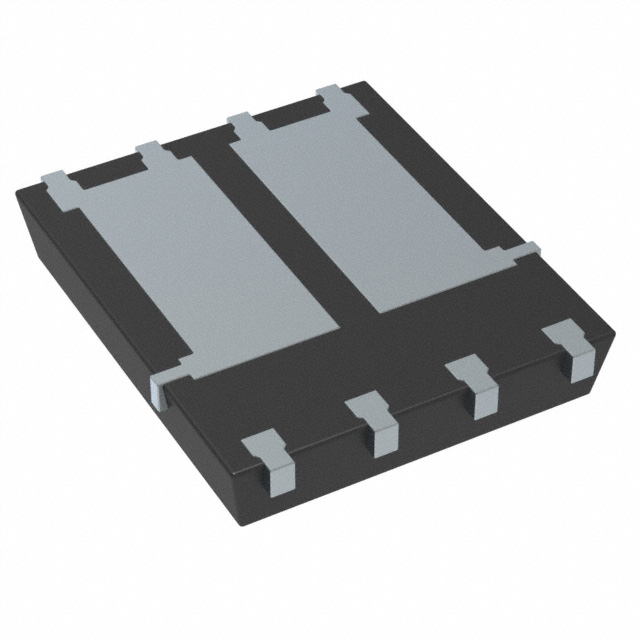

G100C04D52
