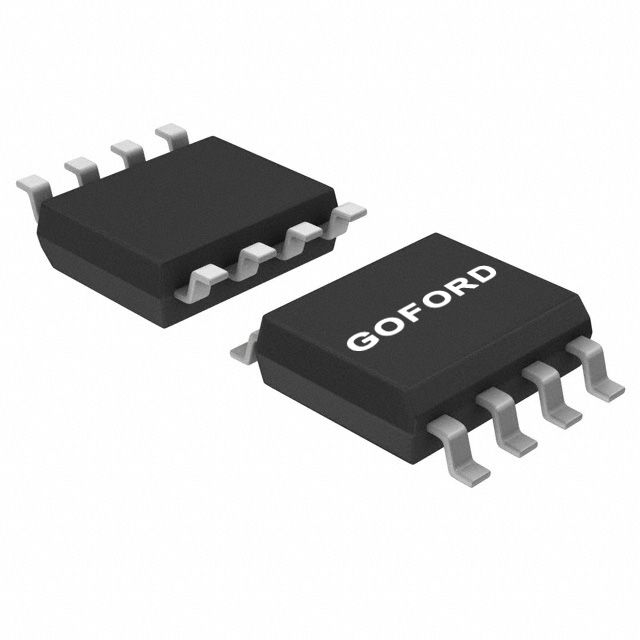

G300N04S2
MOSFET N+N-CH 40V 5.5A 1.25W SOManufacturer: Goford Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 40V 5.5A (Tc) 1.25W (Tc) Surface Mount 8-SOP
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.25W (Tc) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 5.5A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 522pF @ 20V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 3A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 10nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-SOP |
| Grade | - |
| Qualification | - |
