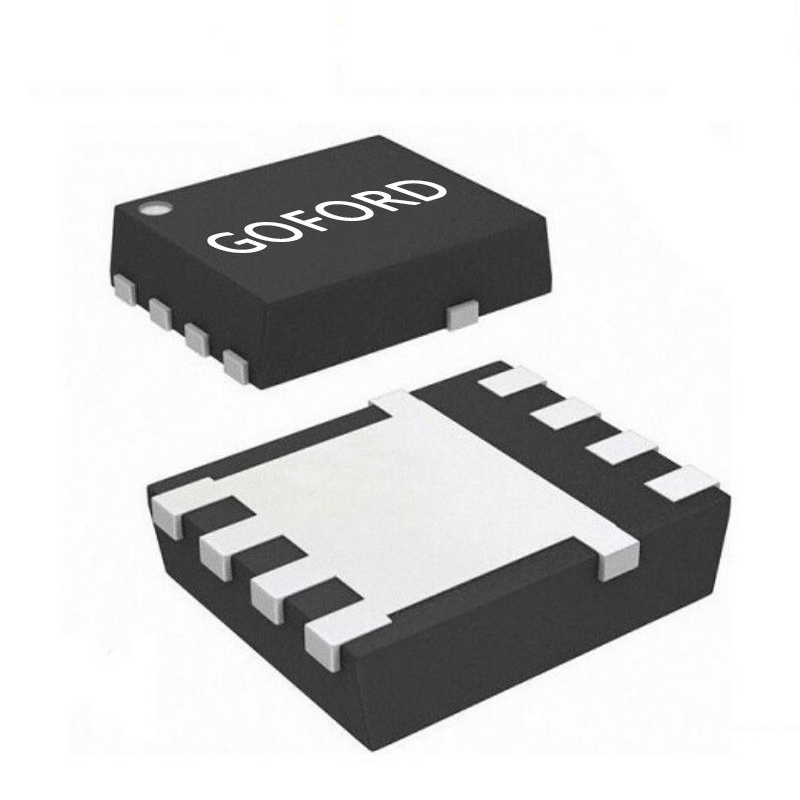

G170P02D32
MOSFET P+P-CH 20V 20A 15W DFN3*3Manufacturer: Goford Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 20A (Tc) 15W (Tc) Surface Mount 8-DFN (3.15x3.05) Dual
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 15W (Tc) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 2193pF @ 10V |
| Rds On (Max) @ Id, Vgs | 21mOhm @ 6A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 8-DFN (3.15x3.05) Dual |
