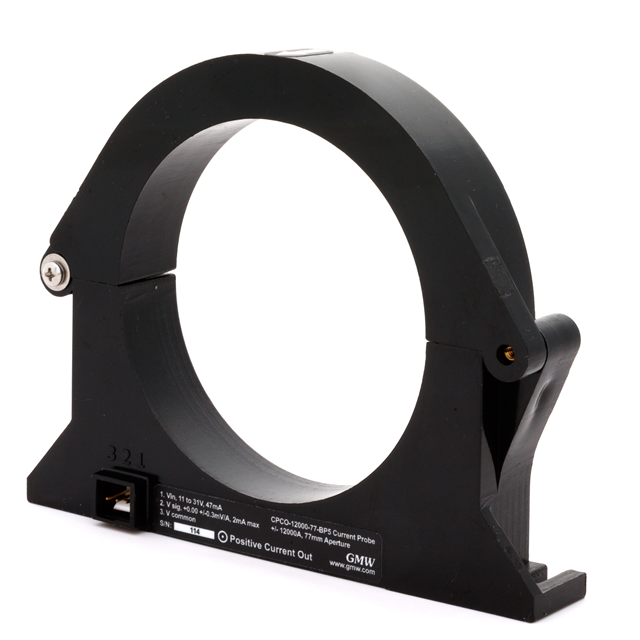

CPCO-12000-77-MA
DC-AC CURRENT PROBE, CLAMP-ON, 1Manufacturer: GMW Associates
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 12000A 1 Channel Open Loop Bidirectional Box
Additional Information
Series: CPCORoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Box |
| Polarization | Bidirectional |
| Mounting Type | Panel Mount |
| Output | Ratiometric, 4mA ~ 20mA |
| Frequency | DC ~ 40kHz |
| Accuracy | 1% |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Supply | 11V ~ 26V |
| Response Time | 10µs |
| Sensor Type | Open Loop |
| Linearity | ±0.5% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 47mA |
| Current - Sensing | 12000A |
| Supplier Device Package | - |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

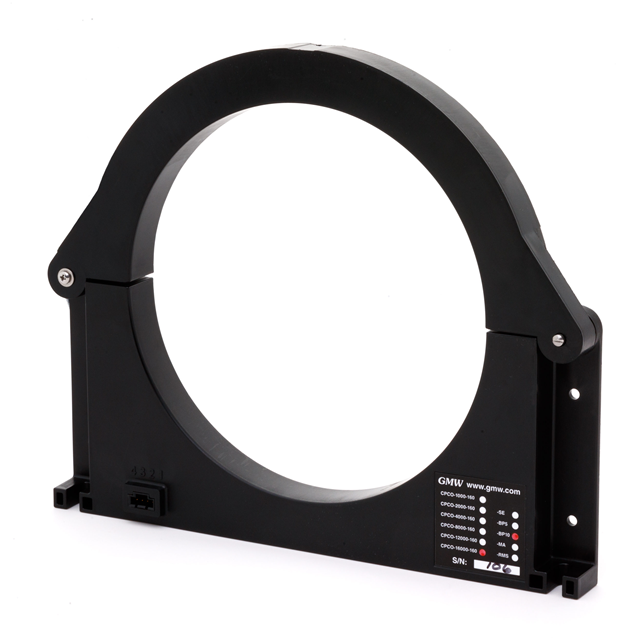

CPCO-1000-160-BP10
