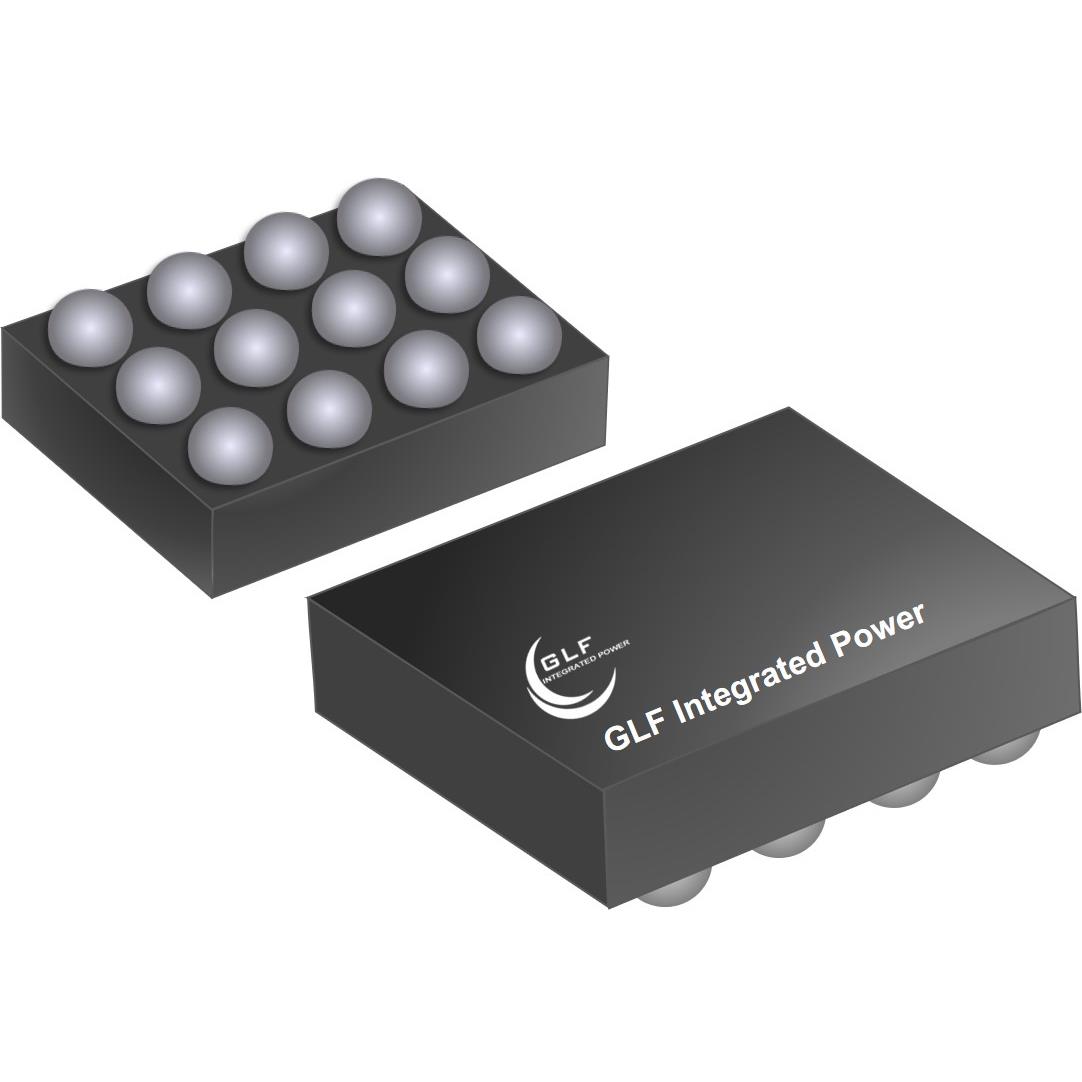

GLF74139
4.5 A Power Mux Switch with TrueManufacturer: GLF Integrated Power
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 2:1 P-Channel 4.5A 12-WLCSP (1.27x1.67)
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFBGA, WLCSP |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | - |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 20mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 2V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 4.5A |
| Ratio - Input:Output | 2:1 |
| Supplier Device Package | 12-WLCSP (1.27x1.67) |
| Fault Protection | Reverse Current |
