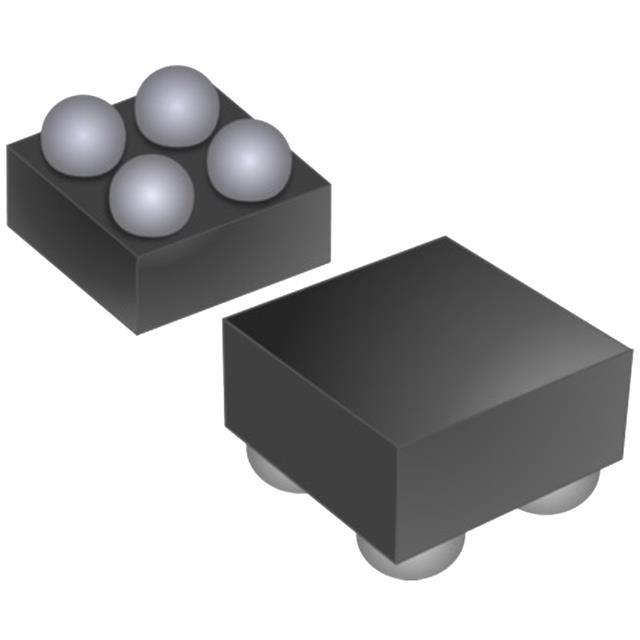

GLF1123H
Nano-Current Consumed Power SwitManufacturer: GLF Integrated Power
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 P-Channel 1A 4-WLCSP (0.67x0.67)
Additional Information
Series: IQSmart™RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, WLCSP |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 52mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 1.1V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 4-WLCSP (0.67x0.67) |
| Fault Protection | Current Limiting (Fixed) |
Request a Quote
