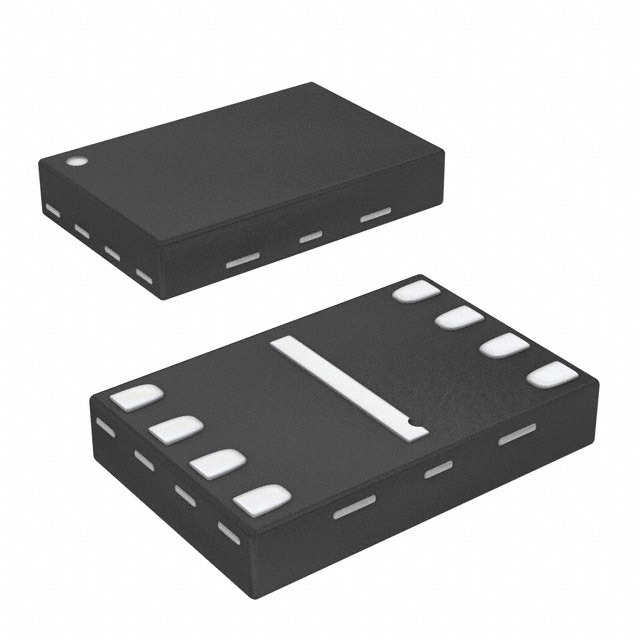

GD25Q40CEJGR
IC FLSH 4MBIT SPI/QUAD I/O 8USONManufacturer: GigaDevice Semiconductor (HK) Limited
Categories: Memory
Quality Control: Learn More
GigaDevice Semiconductor (HK) Limited GD25Q40CEJGR is a 4Mbit NOR Flash memory device featuring a Quad SPI interface for enhanced data throughput. This non-volatile memory operates at a clock frequency of 80 MHz, supporting efficient read and write operations. The memory organization is 512K x 8, with a page write cycle time of 2.4ms and a word write cycle time of 50µs. Designed for surface mounting, it is supplied in an 8-USON (2x3) package, specifically an 8-XFDFN Exposed Pad configuration, suitable for compact board designs. The operating temperature range is -40°C to 105°C, and it requires a supply voltage between 2.7V and 3.6V. This component is commonly utilized in automotive, industrial, and consumer electronics applications demanding reliable and high-speed flash storage.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:%20Limited&mpn=GD25Q40CEJGR&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Size | 4Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | FLASH - NOR |
| Clock Frequency | 80 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-USON (2x3) |
| Write Cycle Time - Word, Page | 50µs, 2.4ms |
| Memory Interface | SPI - Quad I/O |
| Memory Organization | 512K x 8 |
| Programmable | Not Verified |
