G3F18MT12J-TR
1200V 18M TO-263-7 G3F SIC MOSFEManufacturer: GeneSiC Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1200 V 122A (Tc) 526W (Tc) Surface Mount TO-263-7
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 122A (Tc) |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 45A, 18V |
| FET Feature | - |
| Power Dissipation (Max) | 526W (Tc) |
| Vgs(th) (Max) @ Id | 4.3V @ 35mA |
| Supplier Device Package | TO-263-7 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Vgs (Max) | +22V, -10V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 212 nC @ 18 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4962 pF @ 800 V |
| Qualification | AEC-Q101 |
Request a Quote
Clients Also Buy
G3F320MT12J-TR
1200V 320M TO-263-7 G3F SIC MOSF

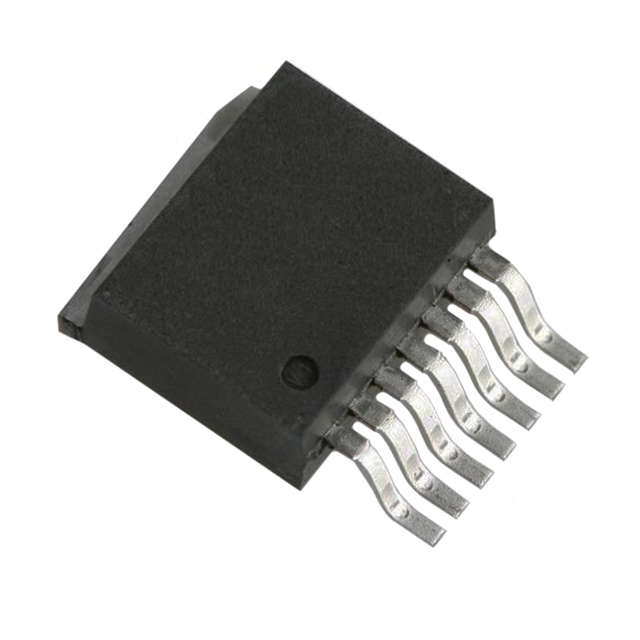

GA50JT12-263
