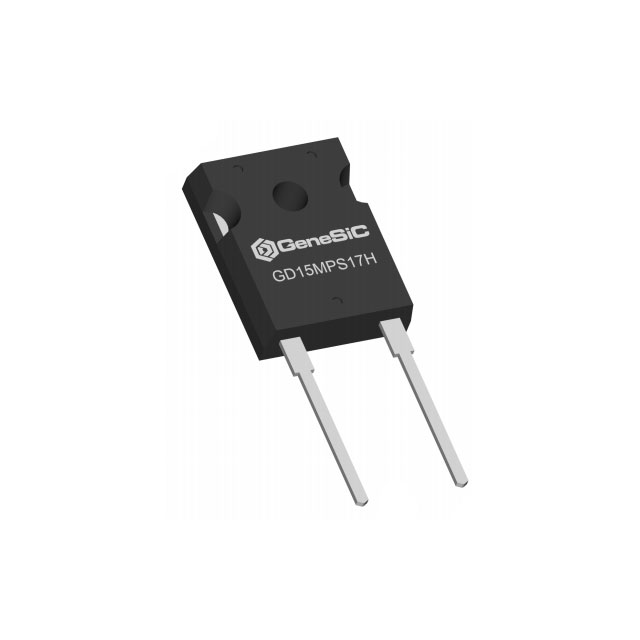

GD15MPS17H
DIODE SIL CARB 1.7KV 36A TO247-2Manufacturer: GeneSiC Semiconductor
Categories: Single Diodes
Quality Control: Learn More
Diode 1700 V 36A Through Hole TO-247-2
Additional Information
Series: SiC Schottky MPS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 1082pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 36A |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1700 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 15 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 1700 V |
