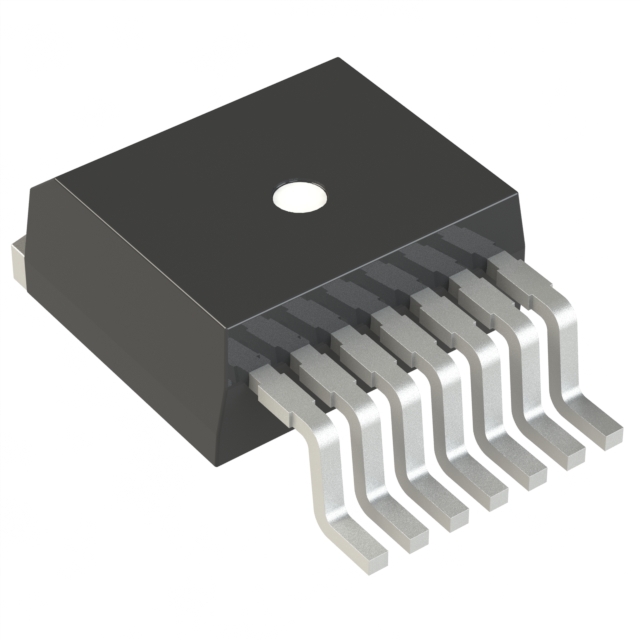

GB05MPS33-263
DIODE SIL CARB 3.3KV 14A TO263-7Manufacturer: GeneSiC Semiconductor
Categories: Single Diodes
Quality Control: Learn More
Diode 3300 V 14A Surface Mount TO-263-7
Additional Information
Series: SiC Schottky MPS™RoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 288pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 14A |
| Supplier Device Package | TO-263-7 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 3300 V |
| Voltage - Forward (Vf) (Max) @ If | 3 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 3000 V |
