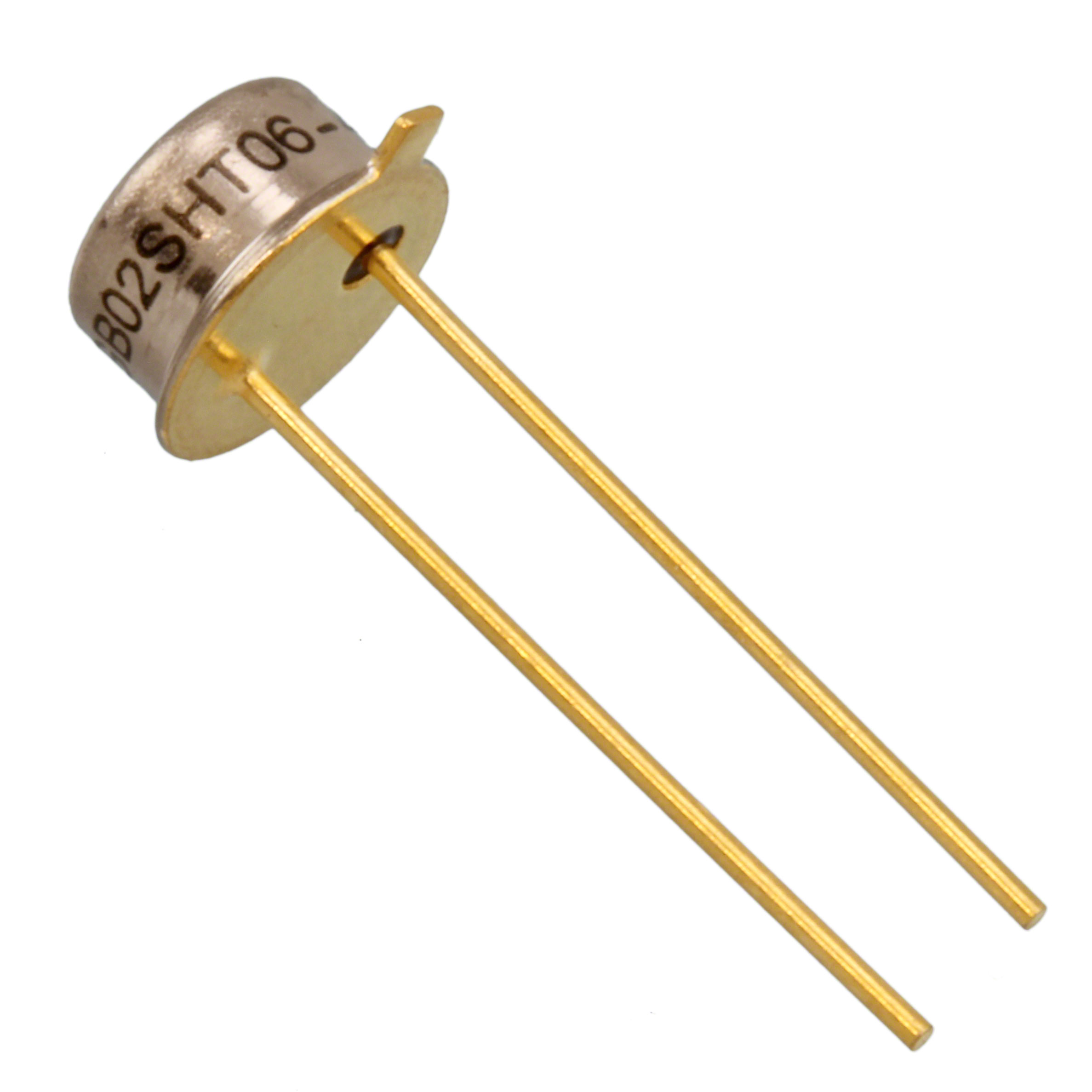

GB02SHT06-46
DIODE SIL CARBIDE 600V 4A TO46Manufacturer: GeneSiC Semiconductor
Categories: Single Diodes
Quality Control: Learn More
Diode 600 V 4A Through Hole TO-46
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-206AB, TO-46-3 Metal Can |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 76pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 4A |
| Supplier Device Package | TO-46 |
| Operating Temperature - Junction | -55°C ~ 225°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
