GA01PNS150-201
SIC DIODE 15000V 1A DO-201Manufacturer: GeneSiC Semiconductor
Categories: RF Diodes
Quality Control: Learn More

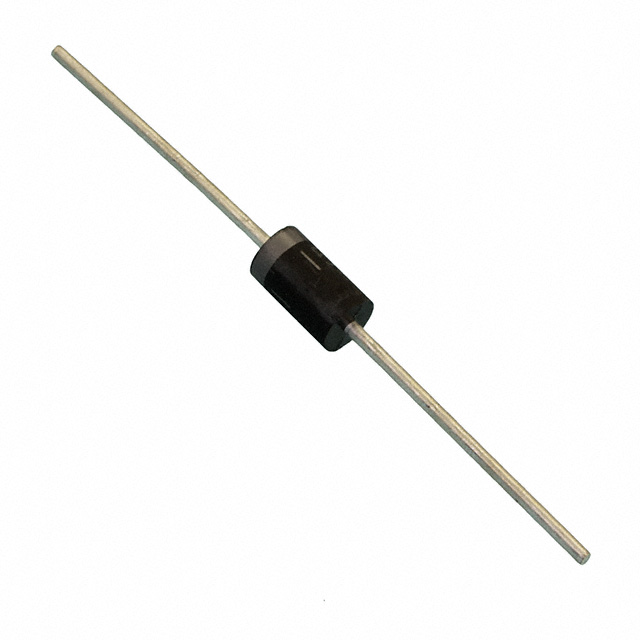

GeneSiC Semiconductor GA01PNS150-201 is a single PIN diode designed for high-voltage applications. This component features a maximum reverse voltage of 15000V and a continuous forward current capability of 1A. Its low capacitance of 22pF at 1V and 1MHz makes it suitable for RF applications. The device operates across a temperature range of -55°C to 175°C (TJ) and is housed in a standard DO-201AD axial package for robust mounting. This diode is commonly utilized in power supply, high-voltage switching, and RF power amplification circuits across various industrial sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-201AD, Axial |
| Diode Type | PIN - Single |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Capacitance @ Vr, F | 22pF @ 1V, 1MHz |
| Resistance @ If, F | - |
| Voltage - Peak Reverse (Max) | 15000V |
| Supplier Device Package | DO-201 |
| Current - Max | 1 A |
