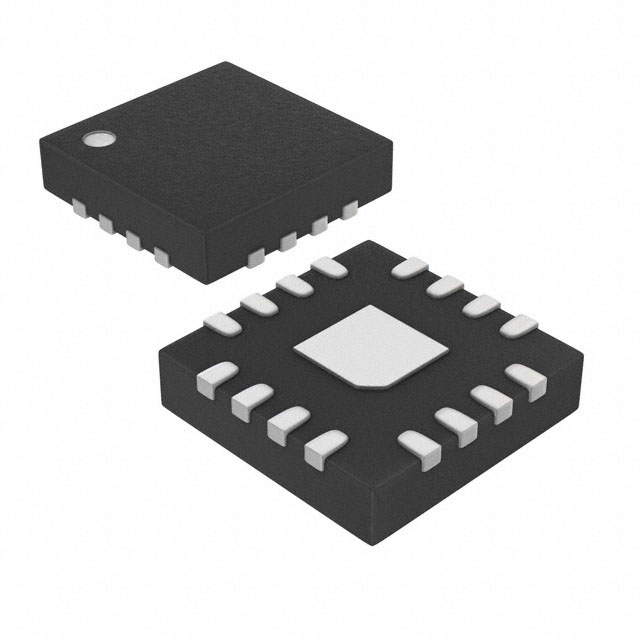

FT220XQ-R
IC USB 4 BIT SPI/FT1248 16QFNManufacturer: FTDI, Future Technology Devices International Ltd
Categories: Controllers
Quality Control: Learn More
The FTDI FT220XQ-R is a highly integrated USB bridging IC designed for seamless connectivity. This component, part of the FT-X and USBmadeEZ-FIFO series, facilitates USB 2.0 to FT1248 protocol conversion. Featuring a 4-bit SPI or FT1248 interface, it operates with supply voltages ranging from 3.3V to 5V and draws a minimal 10.5mA current. The FT220XQ-R is housed in a compact 16-QFN (4x4) package with an exposed pad, suitable for demanding environmental conditions with an operating temperature range of -40°C to 85°C. Its robust design finds application in industrial automation, consumer electronics, and embedded systems where efficient USB interfacing is critical. The device is supplied on a tape and reel for automated assembly.
Additional Information
Series: USBmadeEZ-FIFO, FT-X, X-ChipRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Function | Bridge, USB to FT1248 |
| Interface | FT1248 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.3V ~ 5V |
| Current - Supply | 10.5mA |
| Protocol | USB |
| Standards | USB 2.0 |
| Supplier Device Package | 16-QFN (4x4) |
| Programmable | Not Verified |
