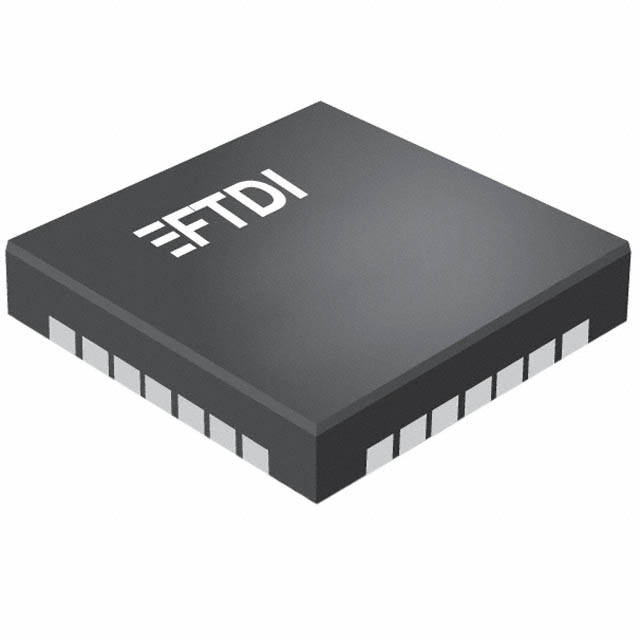

FT120Q-R
IC CONTROLLER USB 28QFNManufacturer: FTDI, Future Technology Devices International Ltd
Categories: Controllers
Quality Control: Learn More
The FTDI FT120Q-R is a USB 2.0 controller designed for high-performance embedded applications. This component, housed in a compact 28-QFN (4x4) package with an exposed pad, provides a robust USB interface solution. It operates within a supply voltage range of 4V to 5.5V and draws a typical current of 5mA. The FT120Q-R supports the USB 2.0 standard, ensuring broad compatibility with existing USB ecosystems. Its functionality as a controller makes it suitable for a wide array of industrial and consumer electronics, including data acquisition systems, human interface devices, and embedded communication modules. The device is supplied in Tape & Reel packaging, facilitating automated assembly processes. Operating temperature range is -40°C to 85°C, ensuring reliability in demanding environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad |
| Function | Controller |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4V ~ 5.5V |
| Current - Supply | 5mA |
| Protocol | USB |
| Standards | USB 2.0 |
| Supplier Device Package | 28-QFN (4x4) |
| Programmable | Not Verified |
