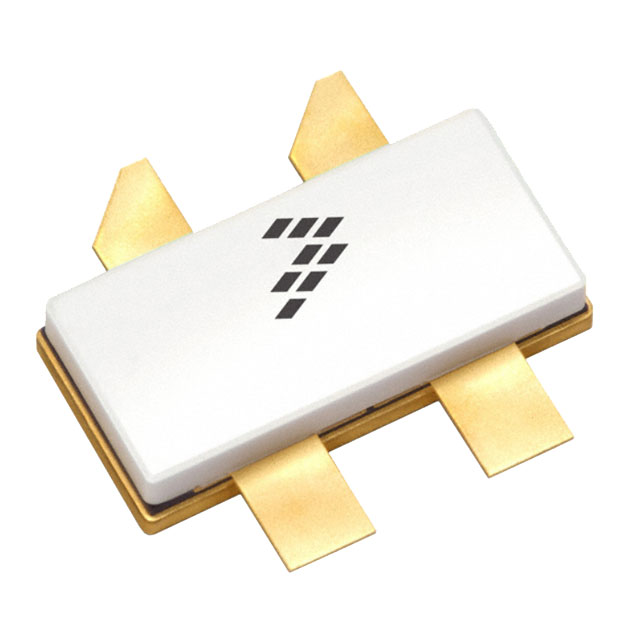

MRF8P20165WHSR5
RF MOSFET LDMOS 28V NI780Manufacturer: Freescale Semiconductor
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Freescale Semiconductor MRF8P20165WHSR5 is a 28V LDMOS RF power MOSFET designed for high-frequency applications. This device operates within the 1.88GHz to 2.025GHz range, delivering a power output of 37W with a typical gain of 14.8dB. The current rating under test is 550 mA, with a low standby current of 10µA. It utilizes NI-780S-4 packaging, suitable for chassis mounting. This robust component finds application in wireless infrastructure and base stations.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | NI-780S-4 |
| Current Rating (Amps) | 10µA |
| Mounting Type | Chassis Mount |
| Frequency | 1.88GHz ~ 2.025GHz |
| Configuration | Dual |
| Power - Output | 37W |
| Gain | 14.8dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | NI-780S-4 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 550 mA |
