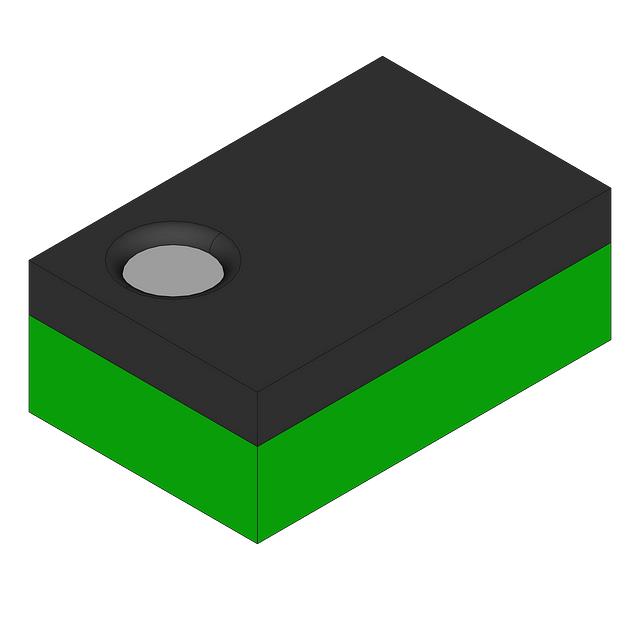

NX5P2924BUK012
LOGIC CONTROLLED HIGH-SIDE POWERManufacturer: Freescale Semiconductor
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 2.5A 6-WLCSP (0.87x1.37)
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Bulk |
| Package / Case | 6-XFBGA, WLCSP |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 14mOhm |
| Input Type | Inverting |
| Voltage - Load | 0.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 2.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 6-WLCSP (0.87x1.37) |
| Fault Protection | - |
Request a Quote
