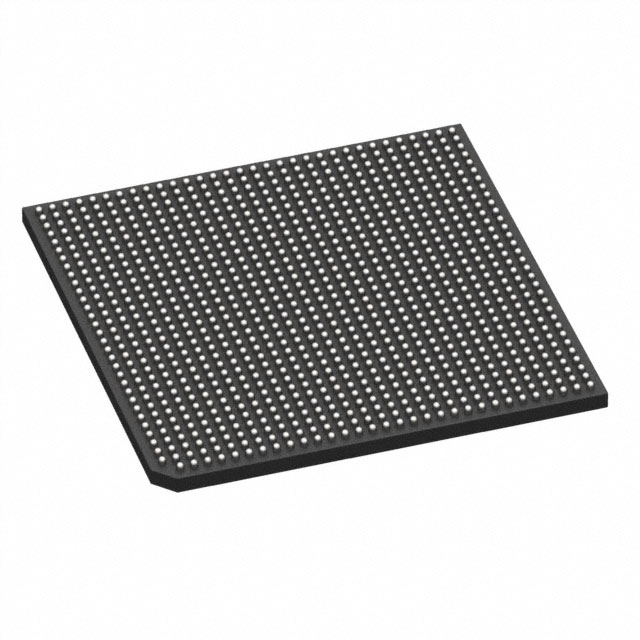

MPC8568EVTAUJJ
IC MPU MPC85XX 1.333GHZ 1023BGAManufacturer: Freescale Semiconductor
Categories: Microprocessors
Quality Control: Learn More
Freescale Semiconductor MPC85xx series microprocessor, part number MPC8568EVTAUJJ. This 32-bit, single-core PowerPC e500v2 processor operates at 1.333GHz and is housed in a 1023-FCPBGA (33x33) package. It features dual 10/100/1000Mbps Ethernet controllers and supports DDR, DDR2, and SDRAM memory interfaces. Integrated peripherals include DUART, HSSI, I2C, PCI, RapidIO, and UART. The device incorporates a QUICC Engine for communications processing and a Security Engine (SEC) for cryptography and random number generation. I/O voltage compatibility spans 1.8V, 2.5V, and 3.3V. Operating temperature range is 0°C to 105°C (TA). Applications include networking infrastructure, telecommunications, and industrial control systems.
Additional Information
Series: MPC85xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 1023-BBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.333GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 1023-FCPBGA (33x33) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine, Security; SEC |
| RAM Controllers | DDR, DDR2, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, HSSI, I2C, PCI, RapidIO, UART |
