MPC8315ECVRAGDA
IC MPU MPC83XX 400MHZ 620HBGAManufacturer: Freescale Semiconductor
Categories: Microprocessors
Quality Control: Learn More

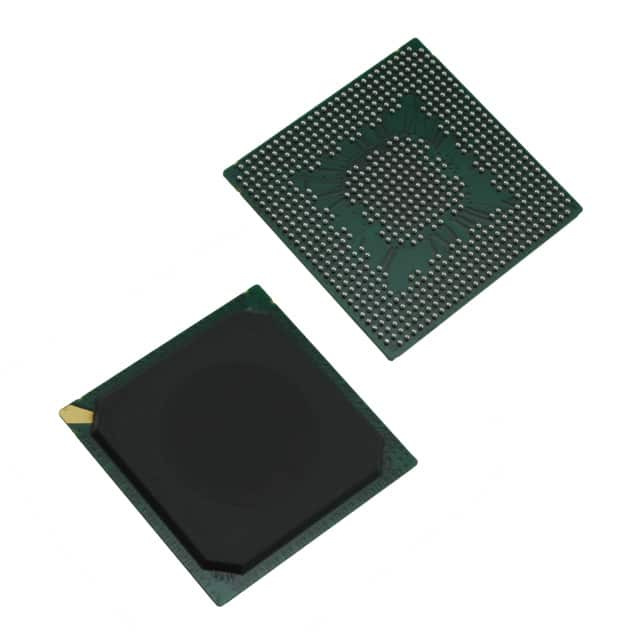

PowerPC e300c3 Microprocessor IC MPC83xx 1 Core, 32-Bit 400MHz 620-HBGA (29x29)
Additional Information
Series: MPC83xxRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 620-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 400MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e300c3 |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 620-HBGA (29x29) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 3.3 |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | DUART, I2C, PCI, SPI, TDM |
