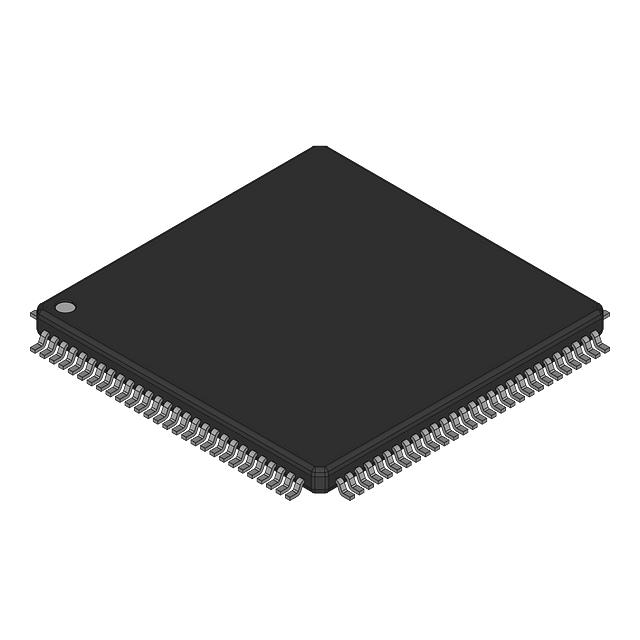

MC9S12DJ64MPVE
IC MCU 16BIT 64KB FLASH 112LQFPManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
Freescale Semiconductor MC9S12DJ64MPVE from the HCS12 series is a 16-bit microcontroller featuring a 64KB FLASH program memory and 4KB of RAM. This device operates at a core speed of 25MHz, offering integrated peripherals including PWM and WDT functionality. Connectivity options encompass CANbus, I2C, SCI, and SPI interfaces. It includes an 8-channel, 10-bit Analog-to-Digital converter and 1KB of EEPROM. The MC9S12DJ64MPVE is housed in a 112-LQFP (20x20) surface-mount package and operates over a temperature range of -40°C to 125°C. This component is commonly utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 112-LQFP |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | HCS12 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.25V |
| Connectivity | CANbus, I2C, SCI, SPI |
| Peripherals | PWM, WDT |
| Supplier Device Package | 112-LQFP (20x20) |
| Number of I/O | 91 |
| Programmable | Not Verified |
