MC9S08LH36CLK

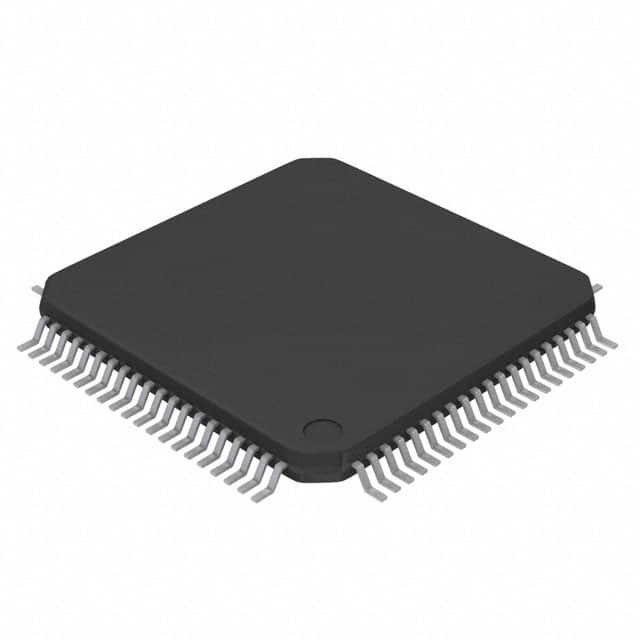

IC MCU 8BIT 36KB FLASH 80LQFPManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
Freescale Semiconductor S08 microcontroller MC9S08LH36CLK features an 8-bit S08 core operating at up to 40MHz. This device offers 36KB of FLASH program memory and 4KB of RAM. Connectivity options include I2C, LINbus, SPI, and UART/USART. Integrated peripherals include an LCD controller, LVD, PWM modules, and a WDT. The MC9S08LH36CLK is equipped with an 8x16-bit Analog-to-Digital converter and supports 39 I/O lines. It operates from a voltage supply of 1.8V to 3.6V with an ambient temperature range of -40°C to 85°C. The component is supplied in an 80-LQFP (14x14) package, suitable for surface mounting. This microcontroller is commonly utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 36KB (36K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 8x16b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | LCD, LVD, PWM, WDT |
| Supplier Device Package | 80-LQFP (14x14) |
| Number of I/O | 39 |
| Programmable | Not Verified |
