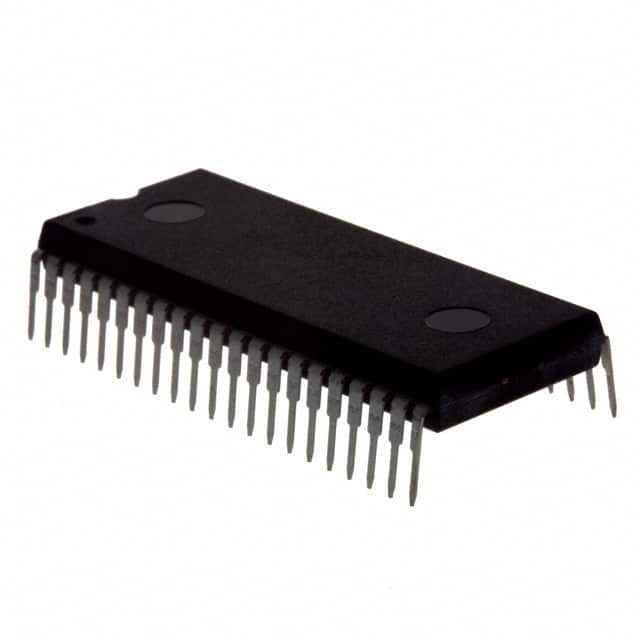

MC9S08GT60ACBE
IC MCU 8BIT 60KB FLASH 42DIPManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
Freescale Semiconductor S08 series microcontroller, part number MC9S08GT60ACBE. This 8-bit MCU features a 40MHz S08 core with 60KB of FLASH program memory and 4KB of RAM. Connectivity options include I2C, SCI, and SPI interfaces. It offers 33 general-purpose I/O pins and integrates an 8x10-bit Analog-to-Digital converter. On-chip peripherals include LVD, POR, PWM, and WDT for robust system control. The device operates from a 1.8V to 3.6V supply and is housed in a 42-PDIP package suitable for through-hole mounting. Typical applications for this component include industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 42-SDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 40MHz |
| Program Memory Size | 60KB (60K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 42-PDIP |
| Number of I/O | 33 |
| Programmable | Not Verified |
