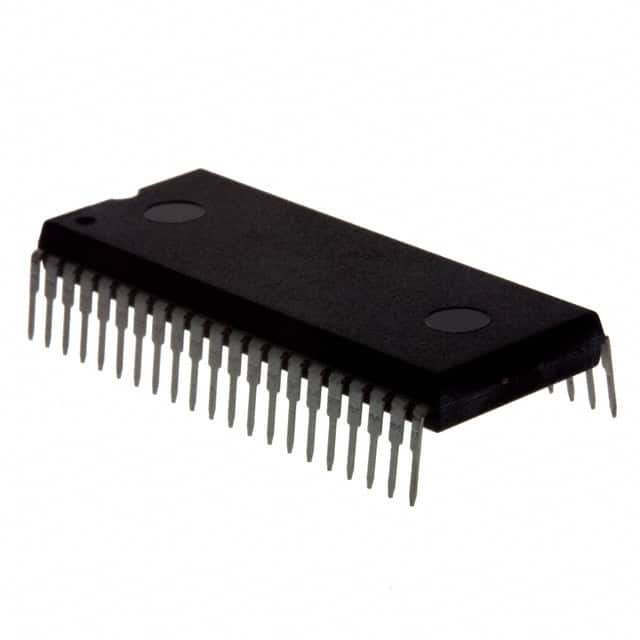

MC908SR12CBE
IC MCU 8BIT 12KB FLASH 42DIPManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
Freescale Semiconductor HC08 Series microcontroller, part number MC908SR12CBE, features an 8-bit HC08 core operating at 8MHz. This component offers 12KB of FLASH program memory and 512 bytes of RAM. Connectivity includes I2C and SCI interfaces. On-chip peripherals include an 11-channel, 10-bit Analog-to-Digital converter, LVD, POR, PWM, and a temperature sensor. The device is housed in a 42-pin PDIP package suitable for through-hole mounting. It operates within a voltage range of 2.7V to 5.5V and is rated for an ambient temperature range of -40°C to 85°C. This microcontroller is utilized in various industrial applications.
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 42-SDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 12KB (12K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 11x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SCI |
| Peripherals | LVD, POR, PWM, Temp Sensor |
| Supplier Device Package | 42-PDIP |
| Number of I/O | 29 |
| Programmable | Not Verified |
