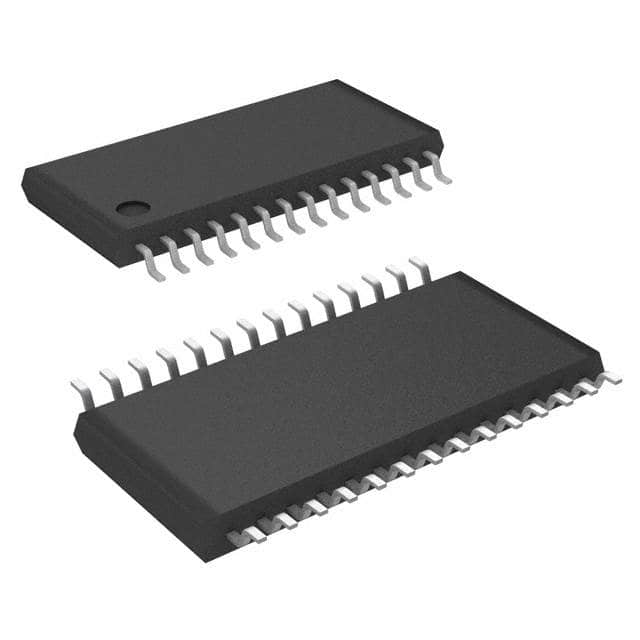

MC908QC16MDRE
IC MCU 8BIT 16KB FLASH 28TSSOPManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
Freescale Semiconductor MC908QC16MDRE is an 8-bit HC08 microcontroller with 16KB of FLASH program memory and 512 bytes of RAM. This device operates up to 8MHz and features 24 general-purpose I/O pins. Integrated peripherals include a 10-channel 10-bit Analog-to-Digital converter, SCI and SPI serial interfaces, LVD (Low Voltage Detect), POR (Power-On Reset), and PWM (Pulse Width Modulation) capabilities. The MC908QC16MDRE is housed in a 28-TSSOP package, designed for surface mounting and rated for operation across a temperature range of -40°C to 125°C. Its robust feature set makes it suitable for applications in automotive, industrial control, and consumer electronics.
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 10x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | LVD, POR, PWM |
| Supplier Device Package | 28-TSSOP |
| Number of I/O | 24 |
| Programmable | Not Verified |
