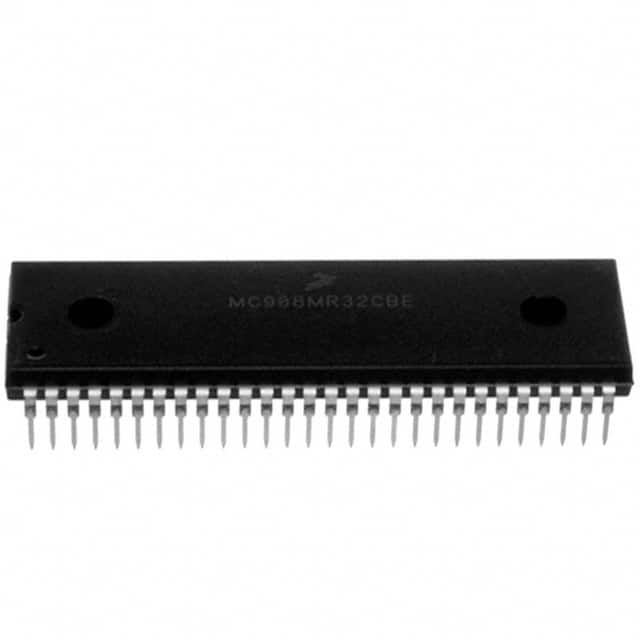

MC908MR32CBE
IC MCU 8BIT 32KB FLASH 56PSDIPManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
The Freescale Semiconductor MC908MR32CBE is an 8-bit HC08 microcontroller featuring 32KB of FLASH program memory and 768 bytes of RAM. This device operates at up to 8MHz and includes an internal oscillator. It offers 36 general-purpose I/O pins and supports SCI and SPI communication protocols. Integrated peripherals include LVD, POR, and PWM. The MC908MR32CBE also incorporates a 10-bit, 10-channel analog-to-digital converter. Supplied in a 56-PSDIP package, it is designed for through-hole mounting and operates within an ambient temperature range of -40°C to 85°C. This microcontroller is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 56-SDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 768 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 10x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | LVD, POR, PWM |
| Supplier Device Package | 56-PSDIP |
| Number of I/O | 36 |
| Programmable | Not Verified |
