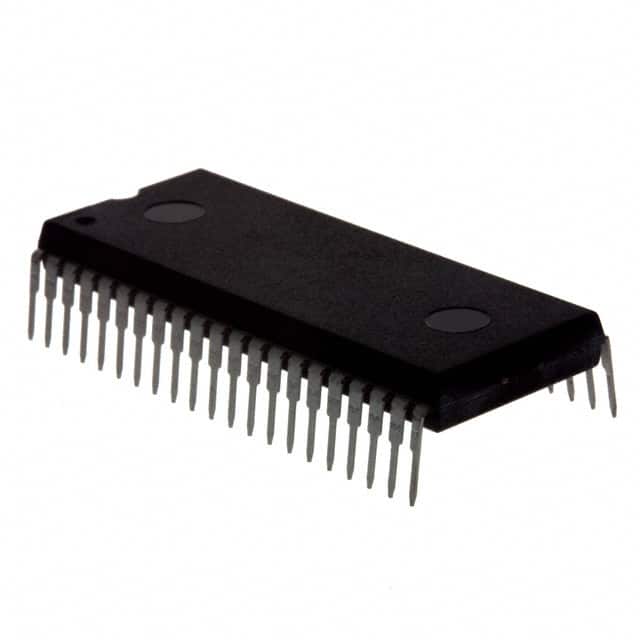

MC908AP8ACBE
IC MCU 8BIT 8KB FLASH 42DIPManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
The Freescale Semiconductor HC08 microcontroller, part number MC908AP8ACBE, offers an 8-bit HC08 core operating at up to 8MHz. This component features 8KB of FLASH program memory and 1KB of RAM, facilitating efficient embedded control applications. Connectivity options include I2C, IRSCI, SCI, and SPI interfaces, alongside an 8-channel, 10-bit analog-to-digital converter and 30 general-purpose I/O pins. Integrated peripherals such as LED drivers, LVD, POR, and PWM are included for enhanced functionality. Designed for through-hole mounting in a 42-PDIP package, the MC908AP8ACBE operates within a temperature range of -40°C to 85°C and requires a supply voltage of 4.5V to 5.5V. This device is commonly utilized in industrial automation, automotive, and consumer electronics sectors.
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 42-SDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | I2C, IRSCI, SCI, SPI |
| Peripherals | LED, LVD, POR, PWM |
| Supplier Device Package | 42-PDIP |
| Number of I/O | 30 |
| Programmable | Not Verified |
