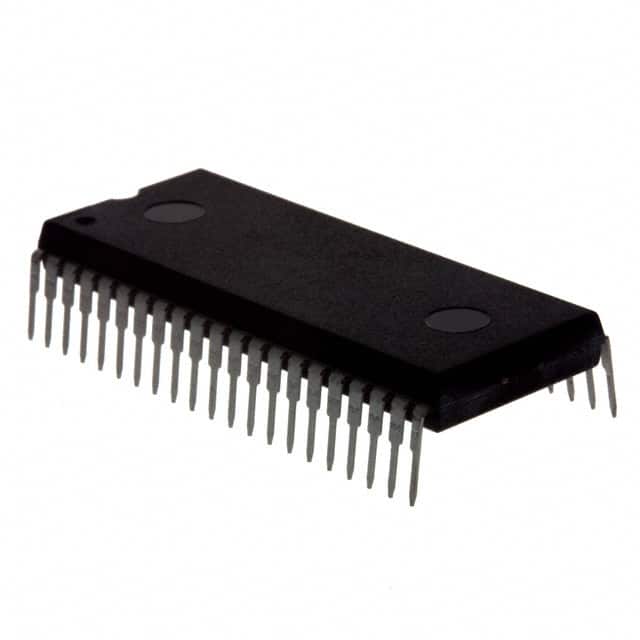

MC908AP64ACBE
IC MCU 8BIT 64KB FLASH 42DIPManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
Freescale Semiconductor HC08 microcontroller, part number MC908AP64ACBE, features an 8-bit HC08 core operating at 8MHz. This component offers 64KB of FLASH program memory and 2KB of RAM. Connectivity options include I2C, IRSCI, SCI, and SPI interfaces. The device is equipped with an 8-channel, 10-bit Analog-to-Digital converter. Integrated peripherals include LED control, Low Voltage Detect (LVD), Power-On Reset (POR), and Pulse Width Modulation (PWM) capabilities. Designed for through-hole mounting, it comes in a 42-PDIP package and operates within a temperature range of -40°C to 85°C. This microcontroller is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 42-SDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | I2C, IRSCI, SCI, SPI |
| Peripherals | LED, LVD, POR, PWM |
| Supplier Device Package | 42-PDIP |
| Number of I/O | 30 |
| Programmable | Not Verified |
