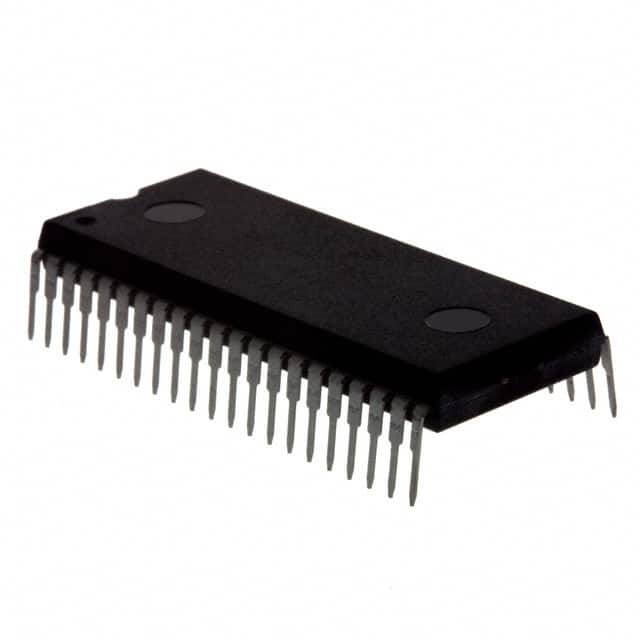

MC908AP32ACBE
IC MCU 8BIT 32KB FLASH 42DIPManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
Freescale Semiconductor HC08 series microcontroller, part number MC908AP32ACBE. This 8-bit MCU features a 32KB FLASH program memory and 2KB RAM, operating at up to 8MHz. Connectivity options include I2C, IRSCI, SCI, and SPI. Integrated peripherals include LED, LVD, POR, and PWM. The device incorporates an 8-channel, 10-bit Analog-to-Digital converter. Supplied in a 42-PDIP through-hole package with an operating temperature range of -40°C to 85°C. This component is commonly found in industrial automation and consumer electronics applications.
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 42-SDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | I2C, IRSCI, SCI, SPI |
| Peripherals | LED, LVD, POR, PWM |
| Supplier Device Package | 42-PDIP |
| Number of I/O | 30 |
| Programmable | Not Verified |
