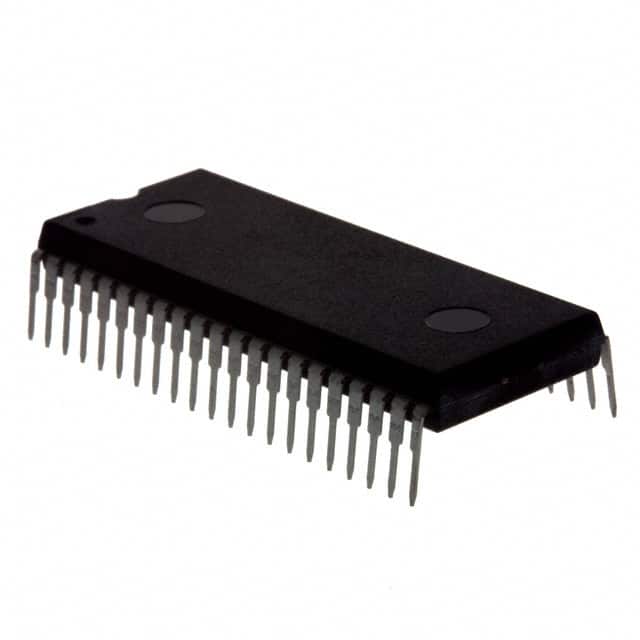

MC908AP16ACBE
IC MCU 8BIT 16KB FLASH 42DIPManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
The Freescale Semiconductor MC908AP16ACBE is an 8-bit HC08 series microcontroller featuring 16KB of FLASH program memory and 1KB of RAM. This device operates at an 8MHz core speed and includes a range of peripherals such as LED, LVD, POR, and PWM controllers. On-chip connectivity options include I2C, IRSCI, SCI, and SPI interfaces, alongside an 8-channel 10-bit analog-to-digital converter. The MC908AP16ACBE is housed in a 42-PDIP package suitable for through-hole mounting and operates within an industrial temperature range of -40°C to 85°C. Its robust feature set makes it suitable for applications in industrial automation, automotive subsystems, and consumer electronics.
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 42-SDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | I2C, IRSCI, SCI, SPI |
| Peripherals | LED, LVD, POR, PWM |
| Supplier Device Package | 42-PDIP |
| Number of I/O | 30 |
| Programmable | Not Verified |
