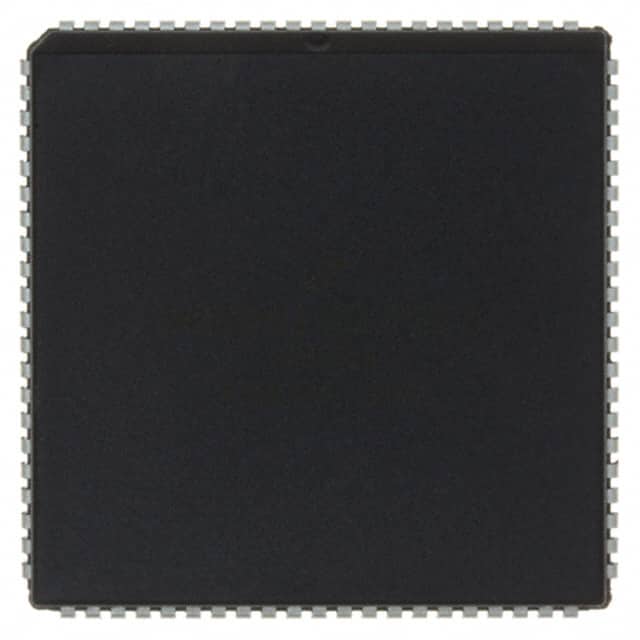

MC711P2CFNE4
IC MCU 8BIT 32KB OTP 84PLCCManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
HC11 HC11 Microcontroller IC 8-Bit 4MHz 32KB (32K x 8) OTP 84-PLCC (29.29x29.29)
Additional Information
Series: HC11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 84-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 4MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | 640 x 8 |
| Core Processor | HC11 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | MI Bus, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 84-PLCC (29.29x29.29) |
| Number of I/O | 50 |
| Programmable | Not Verified |
