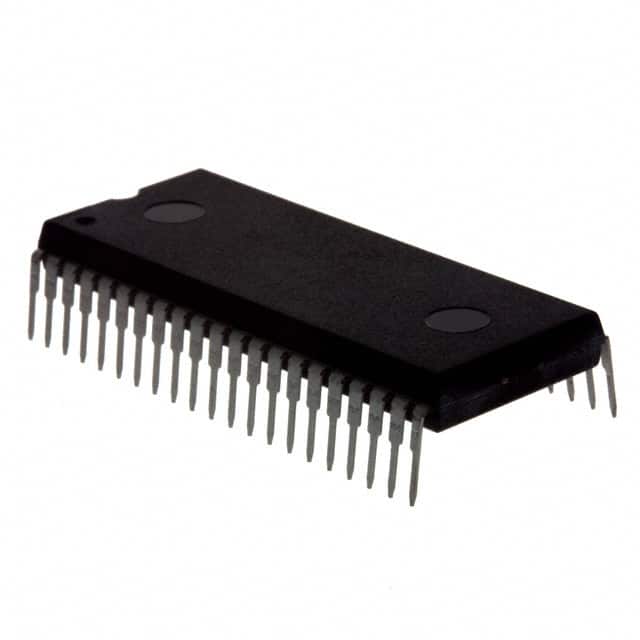

MC705C8ABE
IC MCU 8BIT 8KB OTP 42DIPManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
HC05 HC05 Microcontroller IC 8-Bit 2.1MHz 8KB (8K x 8) OTP 42-PDIP
Additional Information
Series: HC05RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 42-SDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 2.1MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 304 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | HC05 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Supplier Device Package | 42-PDIP |
| Number of I/O | 24 |
| Programmable | Not Verified |
