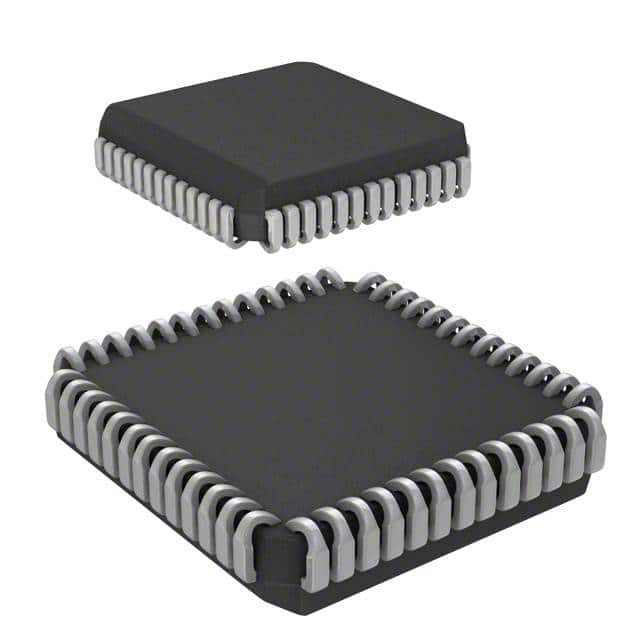

MC68L711E9FNE2
IC MCU 8BIT 12KB OTP 52PLCCManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
Freescale Semiconductor HC11 microcontroller, part number MC68L711E9FNE2. This 8-bit HC11 core microcontroller features 12KB of OTP program memory and 0.5KB of RAM. It operates at 2MHz and includes an internal oscillator. Connectivity options include SCI and SPI interfaces. Peripherals include Power-On Reset (POR) and Watchdog Timer (WDT). The device incorporates an 8-channel, 8-bit Analog-to-Digital (A/D) converter. With 38 general-purpose I/O pins, it is suitable for applications in industrial automation and consumer electronics. The MC68L711E9FNE2 is supplied in a 52-PLCC (52-LCC J-Lead) surface-mount package and operates within a 3V to 5.5V supply voltage range, with an operating temperature of 0°C to 70°C.
Additional Information
Series: HC11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 52-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 2MHz |
| Program Memory Size | 12KB (12K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | 512 x 8 |
| Core Processor | HC11 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Supplier Device Package | 52-PLCC (19.13x19.13) |
| Number of I/O | 38 |
| Programmable | Not Verified |
