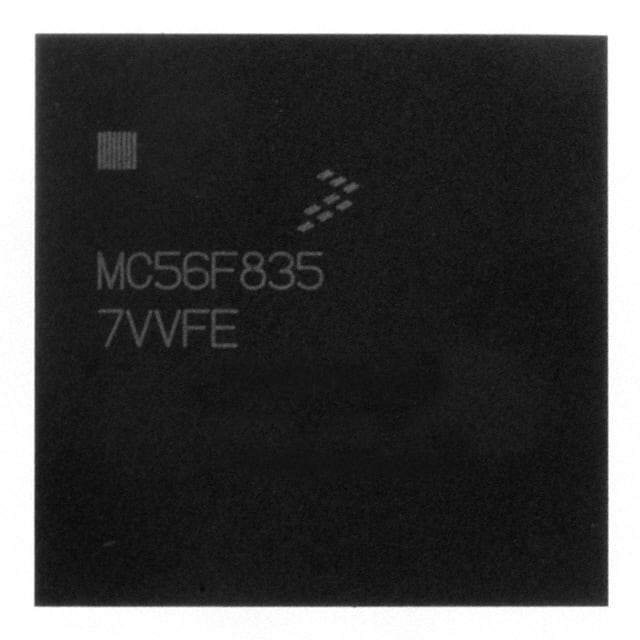

MC56F8347VVFE
IC MCU 16B 128KB FLASH 160MAPBGAManufacturer: Freescale Semiconductor
Categories: Microcontrollers
Quality Control: Learn More
Freescale Semiconductor's 56F8xxx series MC56F8347VVFE is a 16-bit microcontroller featuring the 56800E core, operating at 60MHz. This device offers 128KB (64K x 16) of FLASH program memory and 6K x 16 of RAM. It includes a 16-channel, 12-bit Analog-to-Digital converter and various peripherals such as Power-On Reset (POR), Pulse Width Modulation (PWM), a temperature sensor, and a Watchdog Timer (WDT). Connectivity options include CANbus, EBI/EMI, SCI, and SPI interfaces. The microcontroller is housed in a 160-MAPBGA (15x15) surface-mount package and operates within a voltage range of 2.25V to 3.6V. It is suitable for applications in industrial automation and motor control.
Additional Information
Series: 56F8xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 160-BGA |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 128KB (64K x 16) |
| RAM Size | 6K x 16 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 56800E |
| Data Converters | A/D 16x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, Temp Sensor, WDT |
| Supplier Device Package | 160-MAPBGA (15x15) |
| Number of I/O | 76 |
| Programmable | Not Verified |
