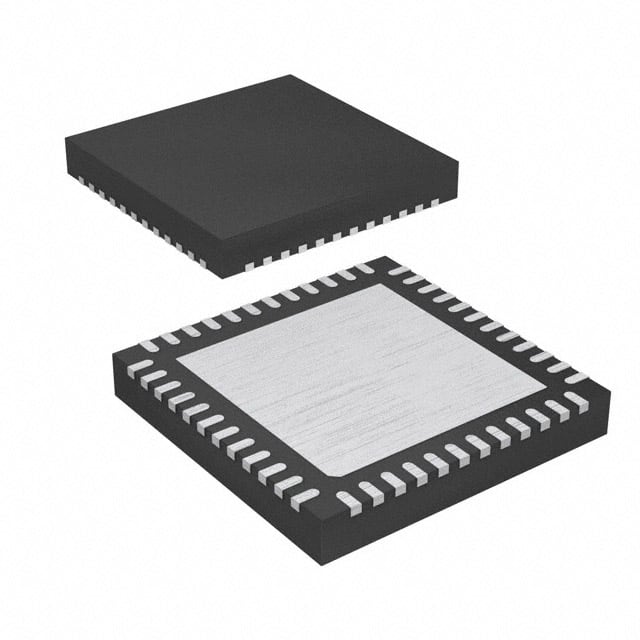

MC34848EP
IC LED DRV CTRLR PWM 48QFNManufacturer: Freescale Semiconductor
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 8 Output DC DC Controller Step-Up (Boost) PWM Dimming 80mA, 160mA 48-QFN-EP (7x7)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 48-VFQFN Exposed Pad |
| Voltage - Output | 45V |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Frequency | 200kHz ~ 1.2MHz |
| Type | DC DC Controller |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 80mA, 160mA |
| Internal Switch(s) | No |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Dimming | PWM |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 14V |
