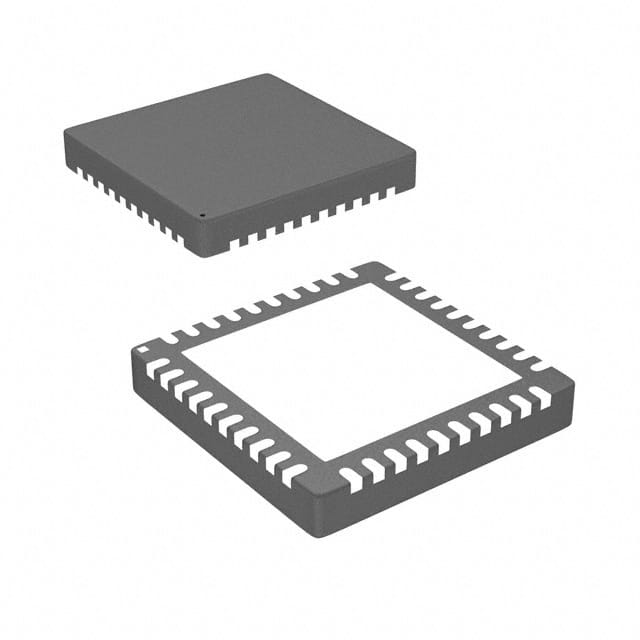

MC34844EP
IC LED DRVR RGLTR PWM 50MA 32QFNManufacturer: Freescale Semiconductor
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 10 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 50mA 32-QFN-EP (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Voltage - Output | 8V ~ 60V |
| Mounting Type | Surface Mount |
| Number of Outputs | 10 |
| Frequency | - |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 50mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 32-QFN-EP (5x5) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 7V |
| Voltage - Supply (Max) | 28V |
