FSSO512GBC-SB00
SSD 512GB M.2 TLC SATA 3.3VManufacturer: Flexxon Pte Ltd
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More
Flexxon Pte Ltd XTREME Series 512GB M.2 TLC SATA Solid State Drive, part number FSSO512GBC-SB00. This 512GB module utilizes TLC NAND flash memory for reliable data storage. Featuring a SATA interface and M.2 form factor (80.00mm x 22.00mm x 3.80mm), it operates at a 3.3V supply voltage. Sequential read speeds reach up to 550MB/s, with sequential write speeds up to 490MB/s. The operating temperature range is 0°C to 70°C. This component is suitable for applications in industrial computing, networking equipment, and embedded systems.
Additional Information
Series: XTREMERoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Size / Dimension | 80.00mm x 22.00mm x 3.80mm |
| Memory Size | 512GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (TLC) |
| Type | SATA |
| Weight | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.3V |
| Current - Max | - |
| Form Factor | M.2 Module |
| Speed - Read | 550MB/s |
| Speed - Write | 490MB/s |
Request a Quote
Clients Also Buy

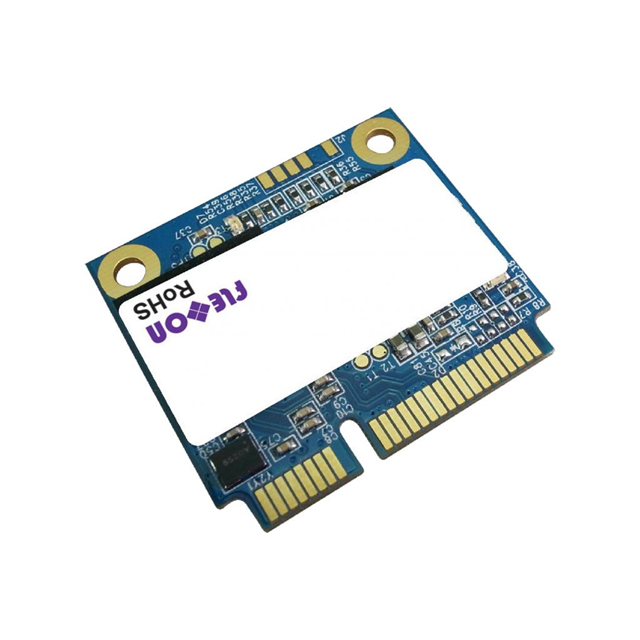

FSSG064GBE-SB00
