1N5997B
DIODE ZENER 7.5V 500MW DO35Manufacturer: Fairchild Semiconductor
Categories: Single Zener Diodes
Quality Control: Learn More

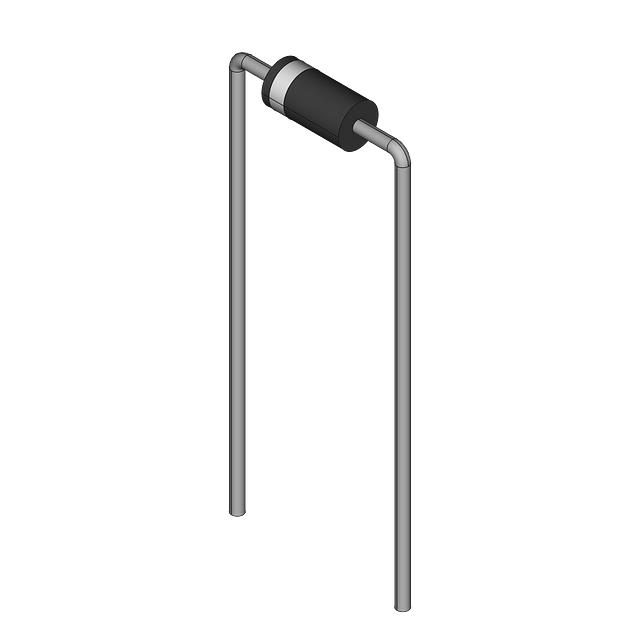

Fairchild Semiconductor 1N5997B is a 7.5V Zener diode with a power dissipation rating of 500 mW. This through-hole component features a ±5% voltage tolerance and a maximum forward voltage of 1.2V at 200mA. The reverse leakage current is 500 µA at 6V, with a maximum Zener impedance of 7 Ohms. Packaged in a DO-204AH (DO-35) axial package, this device operates across a temperature range of -65°C to 200°C. The 1N5997B is commonly utilized in voltage regulation and surge suppression applications across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 200°C |
| Voltage - Zener (Nom) (Vz) | 7.5 V |
| Impedance (Max) (Zzt) | 7 Ohms |
| Supplier Device Package | DO-204AH (DO-35) |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 500 µA @ 6 V |
