FJY3011R
TRANS PREBIAS NPN 40V SOT523FManufacturer: Fairchild Semiconductor
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More

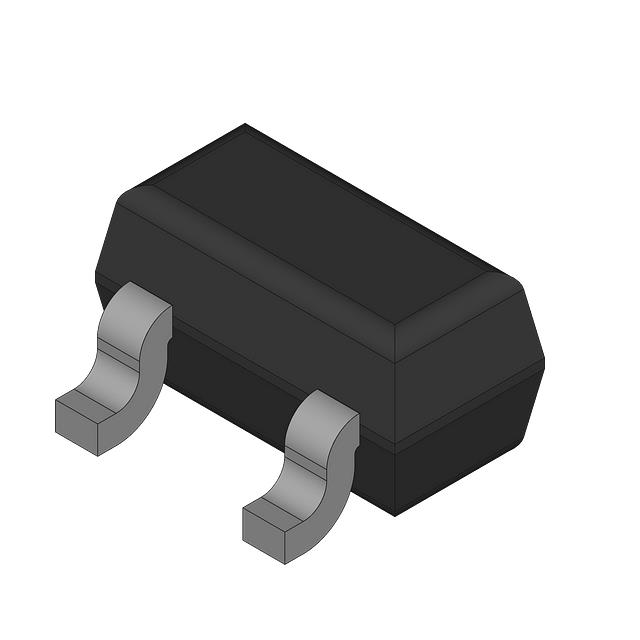

Fairchild Semiconductor FJY3011R is an NPN pre-biased bipolar transistor. This device features a 40V collector-emitter breakdown voltage and a maximum collector current of 100mA. With a transition frequency of 250MHz and a power dissipation of 200mW, it is suitable for high-frequency applications. The integrated base resistor is 22 kOhms. This transistor is supplied in a SOT-523F surface mount package, also referenced as SC-89 or SOT-490. Typical applications include switching and amplification circuits in consumer electronics and industrial automation. The DC current gain (hFE) is a minimum of 100 at 1mA collector current and 5V collector-emitter voltage.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-89, SOT-490 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V |
| Supplier Device Package | SOT-523F |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Power - Max | 200 mW |
| Frequency - Transition | 250 MHz |
| Resistor - Base (R1) | 22 kOhms |
