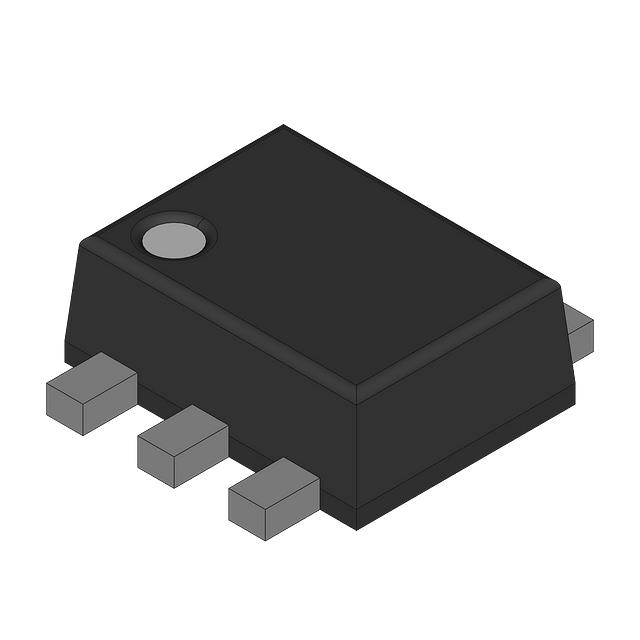

SCH1331-TL-W
POWER MOSFETManufacturer: Fairchild Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 12 V 3A (Ta) 1W (Ta) Surface Mount SOT-563/SCH6
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Rds On (Max) @ Id, Vgs | 84mOhm @ 1.5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA |
| Supplier Device Package | SOT-563/SCH6 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 12 V |
| Gate Charge (Qg) (Max) @ Vgs | 5.6 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 405 pF @ 6 V |
| Qualification | - |
Request a Quote
Clients Also Buy

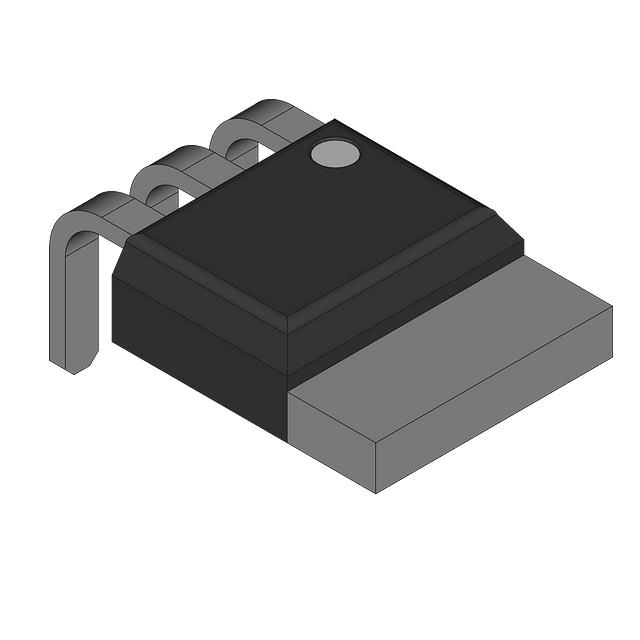

ISL9N303AS3
