ES1DAF
DIODE GEN PURP 200V 1A DO214ADManufacturer: Fairchild Semiconductor
Categories: Single Diodes
Quality Control: Learn More

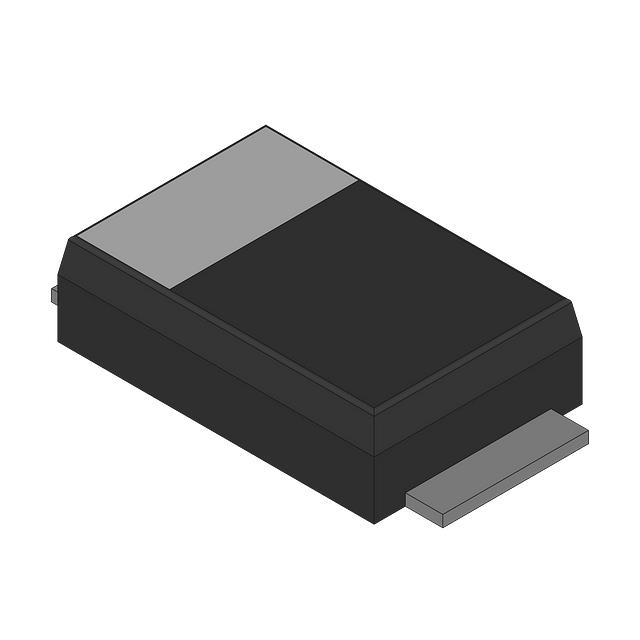

Diode 200 V 1A Surface Mount DO-214AD (SMAF)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-214AD, SMAF |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 34 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-214AD (SMAF) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 1 µA @ 200 V |
| Qualification | AEC-Q101 |
