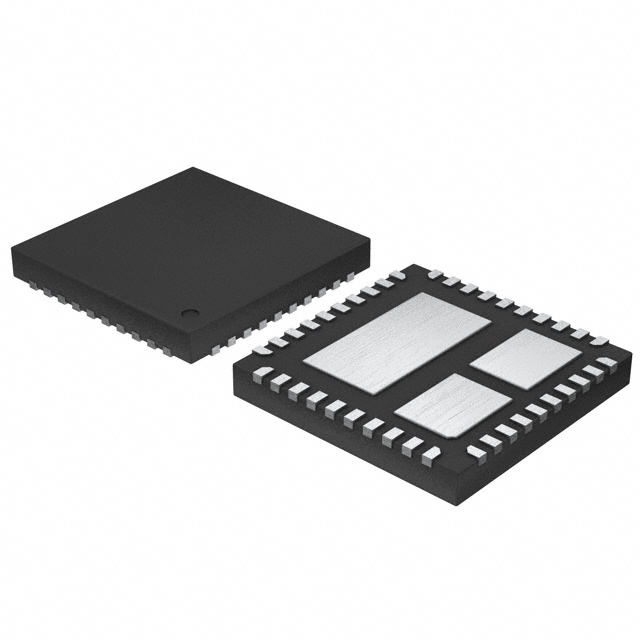

FDMF6700
IC HALF BRIDGE DRVR 25A POWER66Manufacturer: Fairchild Semiconductor
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge Driver Synchronous Buck Converters DrMOS Power66
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Bulk |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 6.4V ~ 13.5V |
| Rds On (Typ) | - |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 25A |
| Current - Peak Output | 65A |
| Technology | DrMOS |
| Voltage - Load | 6.4V ~ 14V |
| Supplier Device Package | Power66 |
| Fault Protection | Shoot-Through, UVLO |
| Load Type | Inductive |
Request a Quote
